IIW Type 2 Calibration Block – Precision Standard for Ultrasonic Testing
The IIW Type 2 Calibration Block is a standardized reference block used primarily in ultrasonic testing (UT) for equipment calibration, system verification, and inspector training. Developed based on recommendations from the International Institute of Welding (IIW), this block enhances the functionality of the original Type 1 block by including additional features for angle beam calibration, resolution checks, and beam profile evaluations.
NDTMachine supplies high-end IIW Type 2 Calibration Block . Contact us and get your NDT supplies at affordable price.

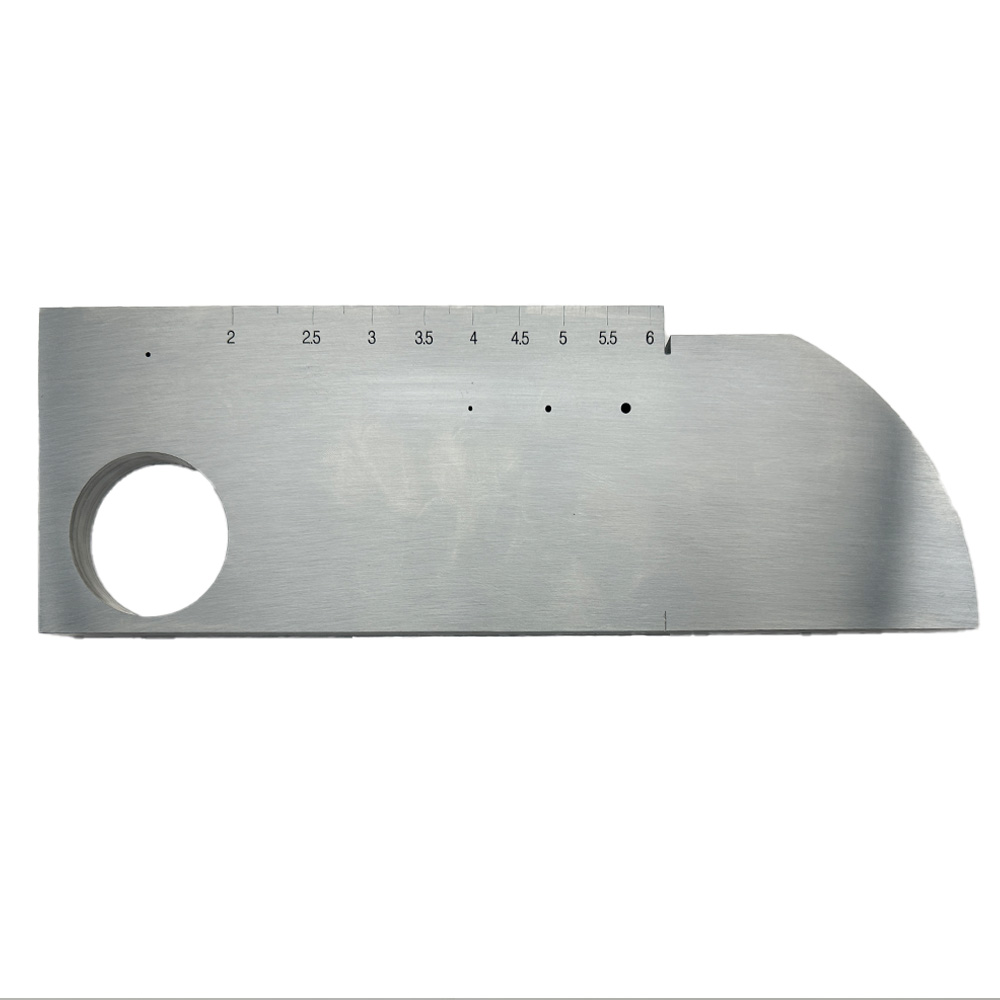

IIW Type 2 Calibration Block Sale
Often made of carbon steel or stainless steel, and machined to exact specifications, the Type 2 block supports various ultrasonic inspection procedures, especially where flaw detection and measurement precision are critical.
Applications of IIW Type 2 Calibration Block
1. Oil and Gas Industry
Used to inspect weld seams, pipeline joints, and structural components under high pressure.
2. Aerospace and Aviation
Calibrates ultrasonic systems used in aircraft part inspections, especially for fatigue crack detection.
3. Power Generation
Used in turbine blade inspections, boiler components, and pressure vessels.
4. Manufacturing and Fabrication
Helps ensure the quality of welded or forged parts.
5. Shipbuilding
Essential for testing hulls, joints, and other structural steel parts under marine conditions.
Purpose and Importance of IIW Type 2 Calibration Block
The IIW Type 2 Calibration Block serves several essential functions:
Equipment Calibration: It provides a known standard to calibrate ultrasonic flaw detectors and probes.
Performance Verification: Confirms instrument linearity, amplitude accuracy, and time base precision.
Angle Beam Evaluation: Helps calibrate and verify angle beam probes (e.g., 45°, 60°, 70°).
Training and Certification: Used in UT technician training, certification, and practical exams.
Compliance: Meets international NDT standards like ISO 2400, ASME, AWS, and EN 12223.
By using the IIW Type 2 block, operators can ensure that flaw detection is consistent, reliable, and traceable.
Features of the IIW Type 2 Block
| Feature | Description |
|---|---|
| Material | Carbon Steel (commonly A36), Stainless Steel available |
| Dimensions | Typically 300 mm x 100 mm x 25 mm (may vary slightly by standard) |
| Notches & Holes | Includes side-drilled holes, flat-bottom holes, and notches |
| Angle Beam Paths | Designed for testing 45°, 60°, and 70° shear waves |
| Reference Radius | Circular segments to test refracted beam paths |
| Markings | Laser-engraved with scale lines, angles, and material ID |
| Surface Finish | Machined to a smooth finish to ensure signal repeatability |
Applications of IIW Type 2 Calibration Block
The block is widely used across industries that rely on ultrasonic non-destructive testing, including:
1. Oil and Gas Industry
Used to inspect weld seams, pipeline joints, and structural components under high pressure.
2. Aerospace and Aviation
Calibrates ultrasonic systems used in aircraft part inspections, especially for fatigue crack detection.
3. Power Generation
Used in turbine blade inspections, boiler components, and pressure vessels.
4. Manufacturing and Fabrication
Helps ensure the quality of welded or forged parts.
5. Shipbuilding
Essential for testing hulls, joints, and other structural steel parts under marine conditions.
Technical Specifications
| Specification | Detail |
|---|---|
| Material Options | Carbon Steel, Stainless Steel, Aluminum (for special applications) |
| Density | Typically 7.85 g/cm³ for steel |
| Flat-Bottom Holes | Various diameters (3 mm, 5 mm, etc.) for distance amplitude correction |
| Side-Drilled Holes | Used to verify sensitivity and resolution |
| Angle Cutouts | Allows accurate testing of angle probes (45°, 60°, 70°) |
| Scale Markings | Metric and/or Imperial |
| Compliance Standards | ISO 2400, ASTM E164, EN 12223, ASME Section V |
Why Choose an IIW Type 2 Block Over Type 1?
The Type 2 block is essentially an enhanced version of the Type 1 with more calibration features. Here's a comparison:
| Feature | Type 1 Block | Type 2 Block |
|---|---|---|
| Side-Drilled Holes | Yes | Yes |
| Flat-Bottom Holes | No | Yes |
| Beam Profile Calibration | Basic | Enhanced |
| Resolution Testing | Limited | Advanced |
| Use with Angle Beam Probes | Basic (45° only) | Expanded (45°, 60°, 70°) |
| Overall Versatility | Moderate | High |
How to Use the IIW Type 2 Calibration Block
Step 1: Set Up the Ultrasonic Flaw Detector
Connect the transducer and adjust the frequency and gain according to the material being inspected.
Step 2: Select the Calibration Block
Ensure the block material and thickness are appropriate for the material you’ll test.
Step 3: Perform Calibration
Use side-drilled holes to set gain and range.
Use flat-bottom holes to establish DAC (Distance Amplitude Correction) curves.
Evaluate angle probes using the angled cutouts and radius features.
Step 4: Verify Results
Ensure repeatability by performing multiple sweeps. Record signal amplitude and flaw location data.
Maintenance and Storage Tips
Store in a padded, dry case to prevent rust or physical damage.
Clean the surface with a non-corrosive solvent after use.
Inspect for wear or surface damage periodically.
Use only certified coupling gels to avoid residue or staining.
Re-certify periodically using a third-party calibration lab.
Compliance Standards
IIW Type 2 Calibration Blocks conform to major international standards:
ISO 2400: Ultrasonic testing – Calibration blocks and methods
ASME Section V: Nondestructive Examination
EN 12223: Ultrasonic examination – Characterization of beam profiles
AWS D1.1/D1.5: American Welding Society codes for structural welding
Each block may be delivered with a calibration certificate traceable to national metrology institutes (NIST, DKD, CNAS, etc.).
Available Variants
| Material | Use Case |
|---|---|
| Carbon Steel | Standard applications |
| Stainless Steel | Corrosion-resistant or high-purity inspections |
| Aluminum | Light metal testing |
| Custom Alloy | Based on client specifications |
Blocks can also be custom-engraved with company logo, serial number, or QR code for asset tracking.
Choosing the Right IIW Calibration Block Supplier
When selecting a supplier, consider the following:
Material certification
Dimensional accuracy
Traceable calibration certificate
Compliance with international standards
Support for custom machining
We offer ISO-certified IIW Type 2 Calibration Blocks, precision machined and inspected using CMM technology, delivered with full documentation and traceability.
Frequently Asked Questions (FAQ)
1. What is the primary use of an IIW Type 2 Calibration Block?
It is used for ultrasonic equipment calibration, specifically for angle beam flaw detection and resolution testing.2. What materials are IIW blocks made from?
They are commonly made from carbon steel, but stainless steel and aluminum versions are also available.3. How is the IIW Type 2 block different from Type 1?
Type 2 includes more features such as flat-bottom holes and angle beam profile cutouts, allowing more comprehensive calibration.4. Is it necessary to calibrate the calibration block?
The block itself does not require calibration, but it should be dimensionally verified and certified by an accredited lab.5. Can I use the block with any UT machine?
Yes, it is compatible with all standard ultrasonic flaw detectors.6. Does the block come with a certificate?
Yes, it is typically supplied with a calibration certificate traceable to international standards.7. How often should I replace my calibration block?
It depends on usage, but blocks should be inspected periodically for wear, and replaced if accuracy is compromised.8. Can it be used for training?
Absolutely. It is commonly used in NDT training programs to teach calibration and flaw detection.9. Are custom versions available?
Yes, custom blocks with different dimensions, materials, or added features can be manufactured on request.10. What standards does the block meet?
ISO 2400, ASME Section V, EN 12223, and other global ultrasonic testing standards.Why Global Clients Choose Us?
