Rail Test Block – Ultrasonic Calibration Block for Railway Track Inspection

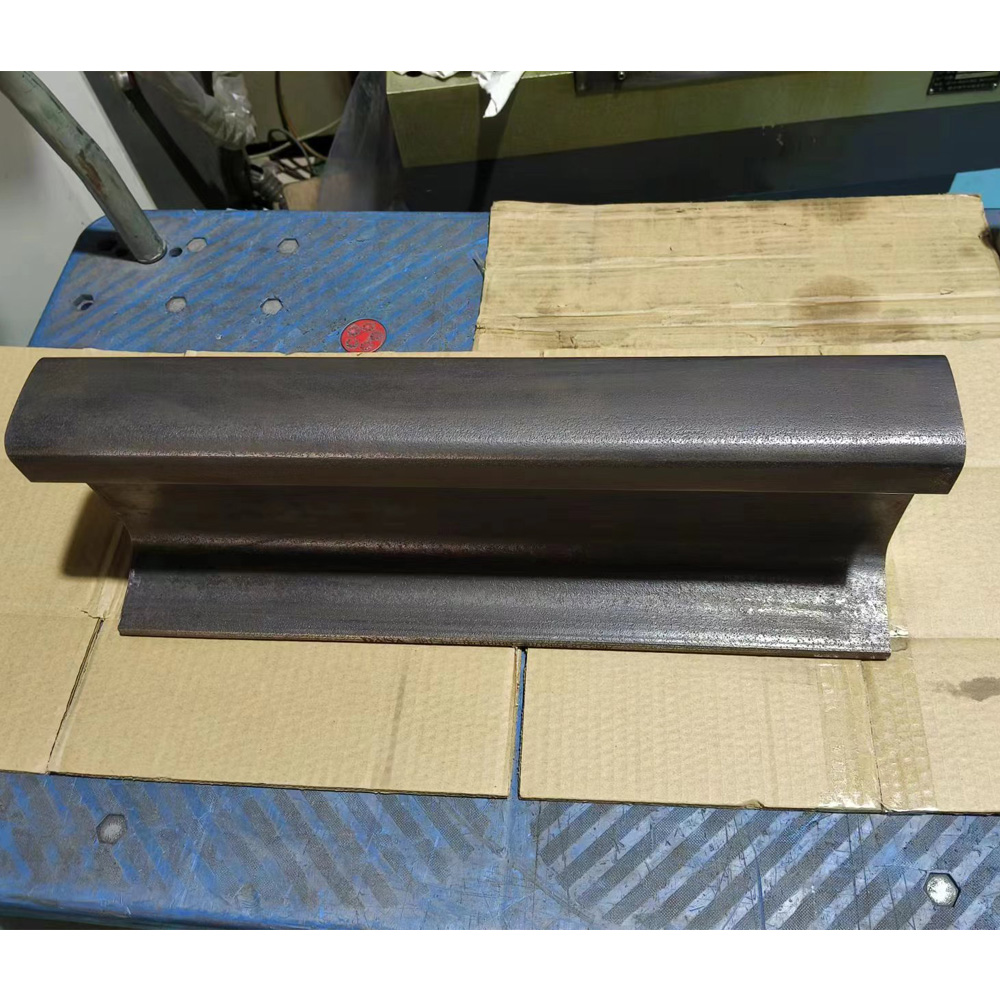

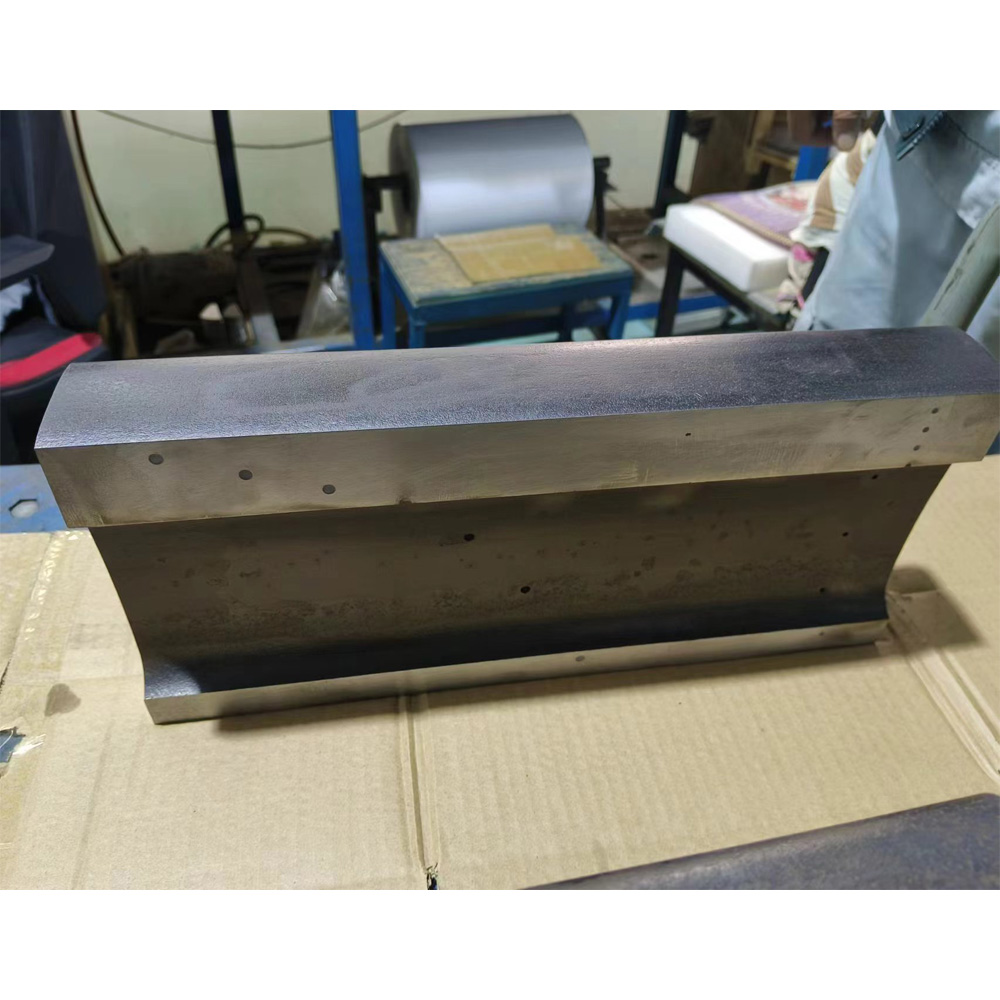

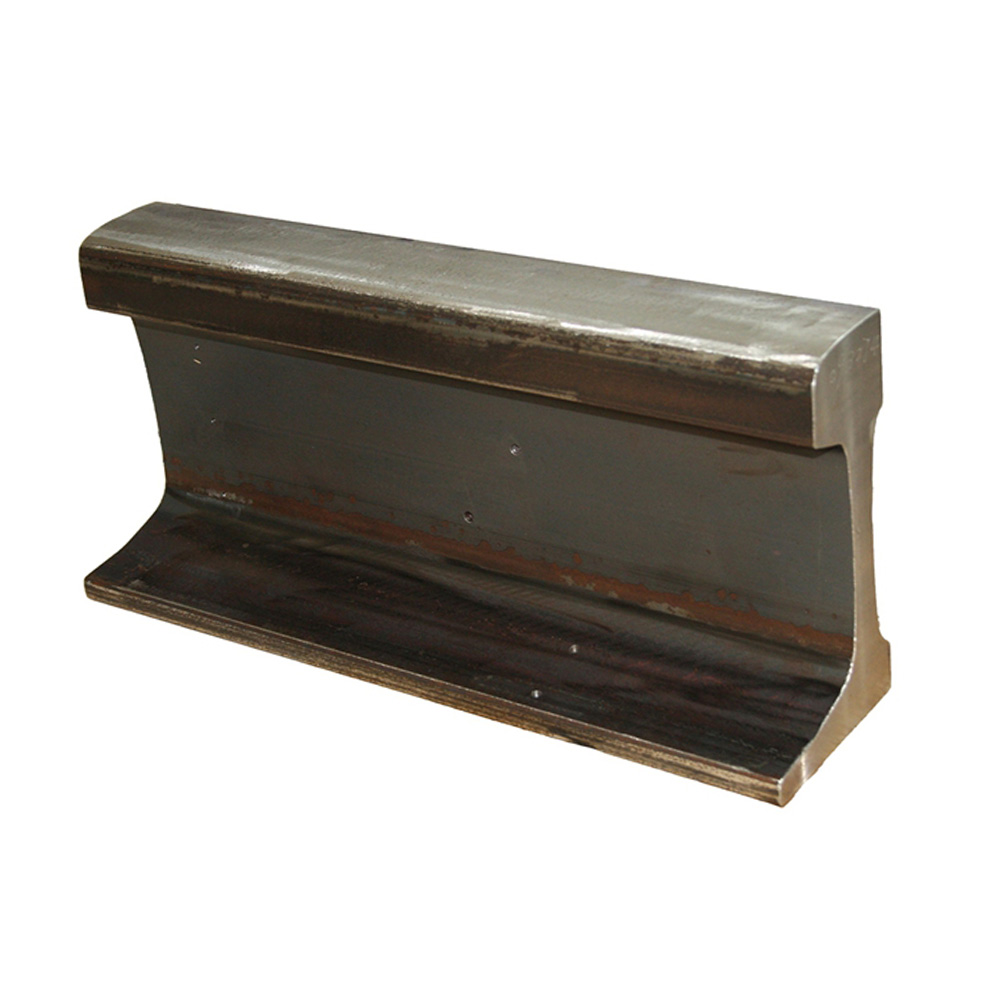

A Rail Test Block is a specialized ultrasonic calibration block designed specifically for railway track inspection. It replicates the geometry, material properties, and flaw conditions typically found in rail sections, allowing NDT professionals to calibrate, validate, and verify ultrasonic flaw detectors (UT) and probes used for rail testing.
NDTMachine supplies high-end Rail Test Block. Contact us and get your NDT supplies at affordable price.
Rail Test Block Sale
Rail test blocks are essential tools in non-destructive testing (NDT) of rail infrastructure, helping to detect internal flaws such as cracks, inclusions, delaminations, and corrosion-induced defects before they result in catastrophic rail failures. These blocks ensure that equipment used in field inspection is both accurate and compliant with industry and safety standards.
Key Features of Rail Test Blocks
| Feature | Description |
|---|---|
| Material Matching | Made from authentic rail steel or an equivalent material with similar acoustic properties |
| Geometric Accuracy | Machined to replicate common rail profiles such as UIC60, UIC54, 115RE, 136RE, etc. |
| Simulated Flaws | EDM notches, side-drilled holes (SDH), flat-bottom holes (FBH), transverse flaws, and artificial cracks |
| Custom Flaw Positioning | Flaws located in head, web, and foot areas for realistic testing scenarios |
| Standard Compliance | Meets standards such as EN 13674-1, ASTM E428, UIC 712 R, and AREMA guidelines |
| Identification Labels | Engraved with block ID, material type, flaw coordinates, and serial numbers |
Why Are Rail Test Blocks Important?
Railway networks endure extreme mechanical stress and environmental exposure. Small defects in rail welds or base metal can quickly escalate into dangerous conditions. Ultrasonic testing is a standard inspection method to detect such issues early, and calibration blocks ensure UT equipment performs reliably.
Rail test blocks are typically used for:
Calibration of ultrasonic testing instruments
Training and certification of UT technicians
Verification of UT procedures
Simulation of real-world defect detection scenarios
Compliance with standards from EN, AREMA, ASTM, and UIC
Applications of Rail Test Blocks
Rail test blocks are essential in the following areas:
1. Field UT Equipment Calibration
Used by technicians and inspectors to calibrate portable or onboard ultrasonic devices for routine rail inspections.
2. Operator Training
Helps train and qualify UT operators to detect flaws in a controlled environment before field deployment.
3. Procedure Qualification
Used in procedure development and validation to simulate specific rail flaw scenarios.
4. R&D and Equipment Testing
UT manufacturers and researchers use rail blocks for prototype validation and algorithm development.
5. Third-Party Inspection & QA
Ensures that outsourced or internal inspections meet regulatory compliance and are repeatable.
Common Rail Types Replicated in Test Blocks
| Rail Type | Description |
|---|---|
| UIC60 / UIC54 | Standard European rail profiles for high-speed and freight lines |
| 115RE / 136RE | Common North American heavy rail profiles |
| BS113A | British Standard rail profile |
| R260 / R350HT | High strength rail steels with improved fatigue resistance |
Typical Flaws Simulated
| Flaw Type | Description |
|---|---|
| Side-Drilled Hole (SDH) | Simulates volumetric defects; ideal for time base and sensitivity checks |
| EDM Notch | Simulates surface or near-surface cracks in the rail head or web |
| Flat-Bottom Hole (FBH) | Simulates planar defects for flaw sizing |
| Transverse Artificial Cracks | Simulates real-world transverse head cracking |
| Vertical/Oblique Cracks | Located in the web or foot to challenge beam alignment and penetration |
Customization Options
We offer a wide range of custom rail test block designs, including:
Custom Flaw Type and Placement: According to specific inspection requirements.
Profile Types: Based on regional rail standards (UIC, AREMA, BS, etc.).
Defect Geometry Tuning: Control flaw size, depth, angle, and orientation.
Coating Simulation: Add simulated rust or coating layers for TOFD and Phased Array testing.
Multi-Zone Blocks: Multiple flaws across head, web, and base.
Industry Standards
Rail Test Blocks are typically manufactured to comply with the following standards:
EN 13674-1 – European standard for rail steel and dimensions
UIC 712 R – International Union of Railways standard for ultrasonic testing
ASTM E428 – Standard for UT reference blocks
AREMA Manual for Railway Engineering – North American standard
ISO 2400 / ISO 7963 – For side-drilled holes and notches
Technical Specifications (Example)
| Parameter | Value |
|---|---|
| Material | R260 rail steel or equivalent |
| Block Length | 300 mm (or as required) |
| Rail Profile | UIC60 |
| Flaws | 2 SDH, 2 EDM Notches, 1 FBH |
| Certification | Supplied with flaw map and acoustic verification |
| Tolerance | ±0.01 mm flaw geometry |
| Surface Finish | Machined and protected |
Advantages of Using Rail Test Blocks
| Advantage | Benefit |
|---|---|
| Improved Inspection Accuracy | Ensures UT systems are correctly calibrated to rail geometry |
| Safety Assurance | Detect defects early to prevent rail breaks and derailments |
| Standardized Training | Uniform blocks used across training programs for global consistency |
| Customizable Design | Tailor flaw types and sizes to real-world defect patterns |
| Durability | Built from hardened steel for repeated use in labs and field settings |
| Regulatory Compliance | Essential for audits, certifications, and internal quality protocols |
Frequently Asked Questions (FAQ)
1. What is a rail test block used for?
A rail test block is used to calibrate ultrasonic testing instruments for railway inspections. It helps verify flaw detection, sensitivity, and accuracy on real rail profiles.2. What types of flaws are included in a rail test block?
Common flaws include side-drilled holes (SDH), EDM notches, flat-bottom holes, and simulated transverse cracks in the rail head or web.3. What rail types can be replicated?
Profiles like UIC60, UIC54, 115RE, 136RE, BS113A, and others can be manufactured to match specific regional requirements.4. Are the blocks made from real rail steel?
Yes, blocks are typically machined from original or acoustically equivalent rail-grade steel to replicate inspection conditions accurately.5. Do the blocks comply with EN and AREMA standards?
Yes, rail blocks can be manufactured to comply with EN 13674, UIC 712 R, AREMA, and ASTM E428 standards.6. Can I request custom flaw designs?
Absolutely. We offer fully customized flaw types, depths, angles, and placements based on your testing needs or regional defect scenarios.7. Can these blocks be used for phased array ultrasonic testing?
Yes, rail test blocks can be designed for PAUT, TOFD, and conventional UT, with flaw geometries suited for advanced techniques.8. Are these blocks suitable for training?
Yes, they are ideal for training technicians, developing inspection procedures, and certifying UT operators.9. What certifications come with a rail test block?
Each block is provided with a flaw map, dimensional report, and optional NIST-traceable flaw certification.10. How do I maintain a rail test block?
Keep it dry, avoid corrosion, clean after use, and store in a protective case to extend its service life.Why Global Clients Choose Us?
