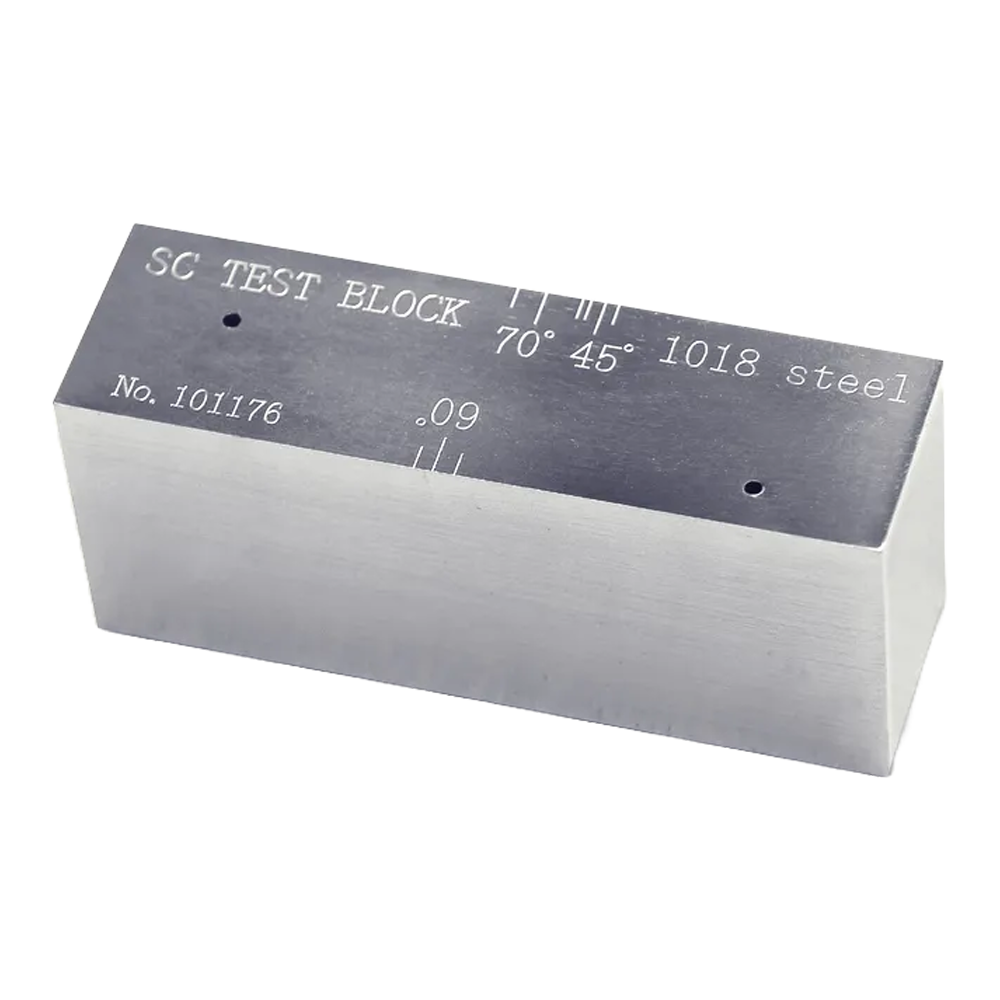

SC Test Block – A Critical Reference Standard for Ultrasonic Testing
The SC Test Block is a precision-engineered ultrasonic calibration block widely used in non-destructive testing (NDT) applications. It is specifically designed to simulate real inspection conditions and allows inspectors to calibrate, evaluate, and verify ultrasonic flaw detection instruments. SC blocks are integral in ensuring the accuracy, repeatability, and reliability of ultrasonic inspection results, especially in industries where safety and quality cannot be compromised.
NDTMachine supplies high-end SC Test Block. Contact us and get your NDT supplies at affordable price.
SC Test Block Sales
Ultrasonic testing (UT) relies heavily on reference standards to establish baseline parameters for inspections. Among these standards, the SC (Shear-wave Calibration) Test Block holds a unique place due to its design, which facilitates the evaluation of angle beam probes, flaw sizing, sensitivity calibration, and resolution verification.
Purpose of SC Test Block in Ultrasonic Testing
Calibration of Ultrasonic Equipment
The SC block is used to fine-tune flaw detectors, ensuring accurate readings across different probe types and test conditions.Evaluation of Shear-Wave Probes
Since it is designed for shear-wave ultrasonic inspection, it allows precise assessment of angle beam transducers.Verification of Flaw Sizing Techniques
Inspectors can practice and confirm their flaw sizing and flaw detection abilities under realistic conditions.Training and Certification
The SC block is a valuable training tool for NDT technicians preparing for Level I, II, or III certifications.Quality Assurance in Fabrication and Welding
Ensures that ultrasonic inspection of weld joints, forgings, and castings maintains high reliability.
Common Materials for SC Test Block
Carbon Steel (1018, A36, etc.) – Most commonly used, simulating general industrial structures.
Stainless Steel (304, 316) – Suitable for corrosion-resistant calibration.
Aluminum Alloys – Used when calibrating for aerospace or lightweight structures.
Custom Materials – Can be manufactured from the same alloy as the inspected component for higher accuracy.
Features of SC Test Block
High Precision Manufacturing – Produced with strict tolerances for accurate calibration.
Standardized Design – Conforms to ASME, ASTM, ISO, and other international standards.
Durable Material – Commonly made from carbon steel, stainless steel, or aluminum, depending on customer requirements.
Multiple Notches and Holes – Designed to simulate flaws, cracks, or discontinuities for practice and calibration.
Supports Various Probe Angles – Suitable for testing with 45°, 60°, and 70° shear-wave probes.
Portable and Versatile – Compact design for laboratory and field inspections.
Applications of SC Test Block
Crack Detection
The SC block includes side-drilled holes (SDHs) and notches, making it possible to detect small cracks and discontinuities.
Weld Inspection
One of the most critical uses is weld inspection. SC blocks allow calibration of ultrasonic flaw detectors for angle beam inspections on welded joints.
Shear-Wave Probe Verification
Used to evaluate probe angles, refracted angles, and sensitivity of ultrasonic transducers.
Flaw Sizing Training
Operators practice determining flaw size and position in various orientations.
Resolution and Sensitivity Checks
Essential for verifying the resolving power of UT equipment.
Educational and Certification Programs
Widely used in training institutes, universities, and professional certification courses for ultrasonic testing.
Field Calibration of Portable UT Devices
Enables inspectors to adjust and verify portable flaw detectors in real inspection environments.
Advantages of Using SC Test Block
Improved Accuracy – Ensures precise flaw detection during inspection.
Standard Compliance – Meets ASME Section V, ASTM E164, ISO 2400, and other NDT standards.
Cost-Effective – Reduces inspection errors and rework.
Training Friendly – Enhances technician skills in shear-wave testing.
Customizable – Blocks can be manufactured with specific geometries, materials, and artificial flaws.
Specifications of a Standard SC Test Block
| Parameter | Typical Value/Range |
|---|---|
| Dimensions | 100 mm × 75 mm × 25 mm (varies) |
| Material | Carbon steel, stainless steel, aluminum |
| Holes | Side-drilled holes (3 mm, 5 mm, 10 mm) |
| Notches | Surface and sub-surface notches |
| Calibration Probes Supported | 45°, 60°, 70° shear-wave probes |
| Standards | ASME, ASTM, ISO, BS, EN |
How SC Test Blocks are Used in Practice
Preparation – The block is cleaned and positioned properly.
Equipment Setup – The UT instrument and probe are connected.
Calibration – Inspectors adjust gain, sensitivity, and angle beam responses using the SC block.
Testing – The actual inspection of welds, castings, or components is conducted.
Verification – Results are validated against SC block standards to ensure accuracy.
Maintenance and Care of SC Test Blocks
To ensure long service life and accuracy, SC blocks should be:
Kept Clean and Free of Rust – Apply protective oil if made from carbon steel.
Stored in Dry Environment – Prevents corrosion and damage.
Handled Carefully – Avoid scratches on calibration surfaces.
Periodically Verified – Check dimensions and flaw conditions with reference standards.
