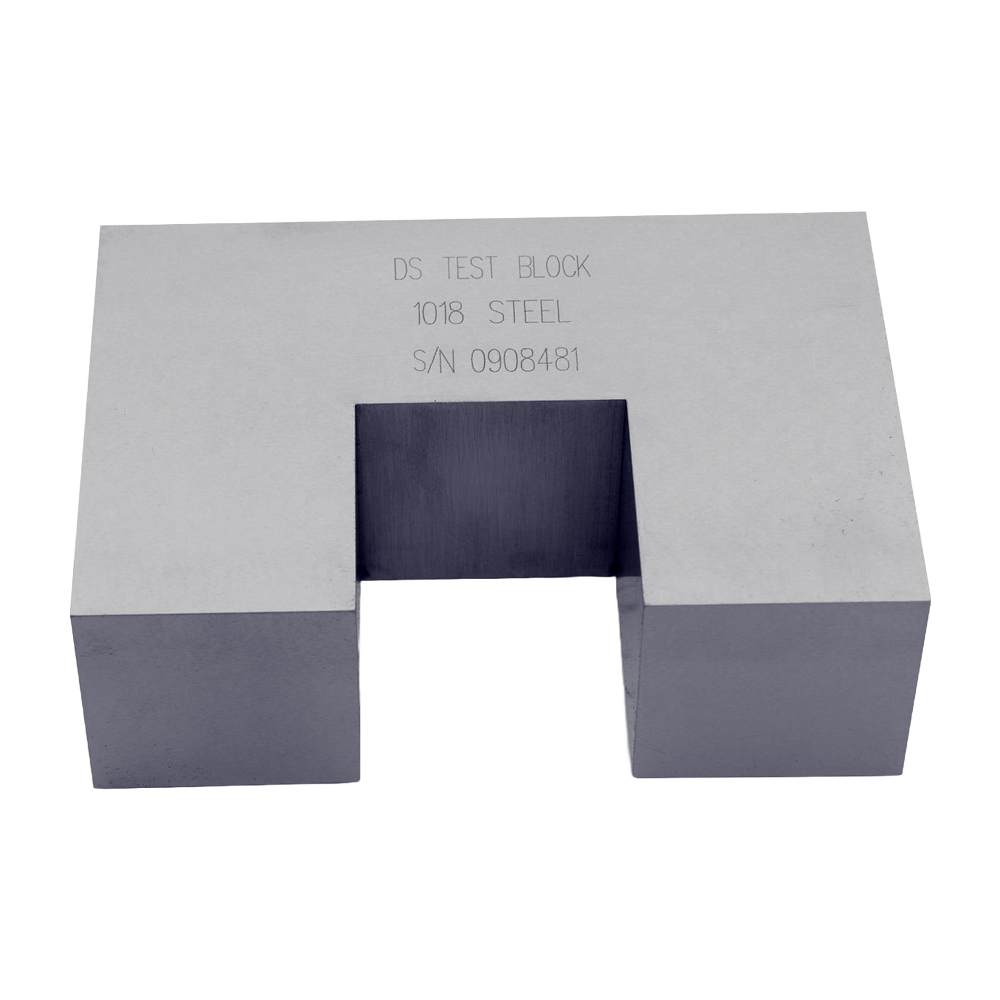

DS Test Block – Essential Calibration Standard for Ultrasonic Testing
The DS Test Block is a specialized reference standard used in ultrasonic testing (UT) to calibrate flaw detectors and angle beam probes. It is designed to evaluate sensitivity, distance calibration, time-base linearity, and refracted angle verification. Due to its unique geometry and machining, the DS block is widely employed in industries where safety, reliability, and precision are critical, including power generation, oil & gas, aerospace, automotive, and heavy manufacturing.
NDTMachine supplies high-end DS Test Block. Contact us and get your NDT supplies at affordable price.
DS Test Block Sales
Unlike general calibration blocks, the DS block focuses on the performance of angle-beam shear-wave probes, making it an indispensable tool for technicians who perform weld inspections, flaw detection, and ultrasonic training.
Features of DS Test Block
High-precision manufacturing with tight tolerances.
Standardized dimensions that conform to ASME Section V, ASTM E164, ISO 2400, and other major codes.
Designed for shear-wave probes at 45°, 60°, and 70°.
Machined notches, holes, and reference surfaces for consistent calibration.
Durable materials such as carbon steel, stainless steel, or aluminum.
Portable and versatile for field and laboratory inspection.
Custom fabrication available to match specific inspection needs.
Purpose of DS Test Block in Ultrasonic Testing
Sensitivity Calibration – Helps set the sensitivity of UT equipment to detect flaws at known depths.
Time-Base Linearity Verification – Ensures the UT system provides accurate depth readings across the range.
Refracted Angle Verification – Confirms the probe angle matches the designed shear-wave angle.
Distance Amplitude Correction (DAC) Curves – Used to plot DAC curves for flaw sizing.
Operator Training – Provides realistic practice conditions for new technicians.
Instrument Verification – Ensures the UT flaw detector is performing correctly before use.
Materials Used in DS Test Block
Carbon Steel (A36, 1018, etc.) – Most common, simulates industrial steel structures.
Stainless Steel (304, 316) – For inspections in corrosive environments.
Aluminum Alloys – For lightweight structural applications, often in aerospace.
Custom Alloys – Manufactured from the same material as the inspected component when required.
Applications of DS Test Block
Weld Inspection
The DS block allows inspectors to calibrate instruments for detecting cracks, lack of fusion, porosity, and inclusions in welded joints.
Crack and Flaw Detection
It provides reference conditions for detecting flaws on surfaces and subsurfaces using shear-wave probes.
Shear-Wave Probe Evaluation
Designed specifically for angle-beam probes, the DS block helps confirm probe accuracy, beam spread, and refracted angle.
Sensitivity and Resolution Checks
Used to determine the ability of UT systems to resolve closely spaced discontinuities.
Training and Certification
Essential in training schools and qualification programs for ultrasonic testing Level I, II, and III.
Heat Exchanger Tube and Pressure Vessel Calibration
Ensures accurate flaw detection in high-pressure environments by simulating real defect responses.
DAC Curve Development
Provides reference points to construct distance amplitude correction curves for reliable flaw sizing.
Specifications of a Standard DS Test Block
| Parameter | Typical Value/Range |
|---|---|
| Dimensions | Approx. 100 mm × 75 mm × 25 mm (varies by standard) |
| Material | Carbon steel, stainless steel, aluminum |
| Holes | Side-drilled holes (e.g., 1.5 mm, 3 mm, 5 mm) |
| Notches | Surface and sub-surface notches |
| Supported Probes | 45°, 60°, 70° shear-wave probes |
| Standards | ASME, ASTM, ISO, BS, EN |
DS Test Block vs. Other Calibration Blocks
| Feature | DS Test Block | SC Test Block | DC Block | IIW Type 1 Block |
|---|---|---|---|---|
| Focus on shear-wave probes | ✔ | ✔ | ✘ | ✔ |
| Time-base linearity check | ✔ | ✘ | ✔ | ✔ |
| DAC curve plotting | ✔ | ✔ | ✘ | ✔ |
| Size | Compact | Compact | Medium | Large |
| Training use | High | High | Medium | Very High |
Advantages of Using DS Test Block
Improved reliability in weld inspections.
Standard compliance with international codes.
Accurate flaw detection due to precise machining.
Cost efficiency by reducing false calls and rework.
Operator confidence through realistic practice.
Durability – long service life with proper care.
Practical Use of DS Test Block
Setup – Position the DS block securely.
Equipment Connection – Attach the probe and connect to the flaw detector.
Calibration – Adjust gain, angle, and time-base using the block’s holes and notches.
Verification – Confirm probe refracted angle and linearity.
Inspection – Proceed with actual weld or component testing.
Re-check – Validate readings against DS block standards.
Maintenance of DS Test Block
Keep clean and dry to prevent rust.
Apply protective coating on carbon steel blocks.
Avoid scratches on reference surfaces.
Store in protective cases when not in use.
Periodic verification against master standards.
