Visual Testing (VT) – A Comprehensive Guide
Visual Testing (VT) is the most fundamental and widely used Non-Destructive Testing (NDT) method. It involves the direct observation of a material, component, or structure to identify surface defects, cracks, corrosion, misalignments, and other irregularities.
NDTMachine supplies high-end Visual Testing (VT). Contact us and get your NDT supplies at affordable price.
Visual Testing Sale
VT is commonly used in industries such as manufacturing, aerospace, construction, oil & gas, and power generation to ensure the integrity and safety of materials and welded structures. Compared to other NDT methods, Visual Inspection is cost-effective, quick, and requires minimal equipment, making it an essential first step in many inspection processes.
Applications of Visual Testing
Manufacturing Industry
Inspects machined parts, welds, castings, and coatings.
Power Generation
Examines boilers, heat exchangers, and turbines for defects.
Aerospace Industry
Conducts aircraft fuselage, turbine blades, and engine inspections.
Shipbuilding & Marine
Ensures structural integrity of hulls, piping, and propulsion systems.
Construction & Infrastructure
Assesses bridges, buildings, and pipelines for cracks and corrosion.
Oil & Gas Industry
Inspects storage tanks, pipelines, and drilling equipment.
Equipment Used in Visual Testing
✔️ Flashlights & spotlights – Provide optimal lighting.
✔️ Magnifying glasses – Help amplify small surface flaws.
✔️ Rulers & calipers – Measure defect dimensions.

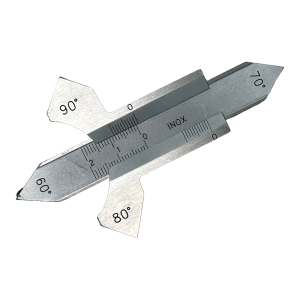

✔️ Weld gauges – Assess weld quality and misalignment.
2. Optical Devices
✔️ Borescopes & Fiberscopes – Used for internal inspections (e.g., pipes, turbines, aircraft engines).
✔️ Mirror-on-stick tools – Allow for angled viewing of hidden surfaces.
✔️ Endoscopes & Video Probes – Capture high-definition images and videos.
✔️ UV Lights – Highlight fluorescent penetrant indications.
✔️ Infrared Cameras – Detect thermal variations and hidden defects.
✔️ Digital Microscopes – Provide high-magnification surface analysis.
✔️ Drones & Robotic Systems – Perform automated remote inspections in hazardous areas.
How Visual Testing Works
1. Direct Visual Inspection
The inspector uses the naked eye or simple tools (e.g., magnifying glass, mirrors, or borescopes) to examine surfaces for defects.
Adequate lighting and proper angles are crucial for accurate detection.
Often performed on welds, pipelines, castings, and machined components.
2. Indirect or Remote Visual Inspection
Used for areas not directly accessible by the inspector.
Employs video borescopes, fiberscopes, cameras, drones, or robotic systems to capture images and videos for analysis.
Commonly used in aircraft engines, pipelines, and industrial machinery.
3. Enhanced Visual Inspection
Utilizes specialized equipment such as UV light, infrared cameras, or digital imaging software to improve defect detection.
Fluorescent penetrant or magnetic particle testing can be combined with VT for enhanced visibility of surface flaws.
Advantages of Visual Testing (VT)
✅ Cost-Effective – Minimal equipment and low operational costs.
✅ Quick & Simple – Can be performed on-site without disrupting operations.
✅ Non-Destructive – No harm to the test object or its components.
✅ Early Defect Detection – Identifies issues before they worsen or lead to failures.
✅ Versatile – Applicable across various industries and materials.
✅ No Radiation or Harmful Chemicals – Safe for both inspectors and the environment.
Limitations of Visual Testing (VT)
❌ Limited to Surface Defects – Cannot detect internal flaws or subsurface defects.
❌ Dependent on Inspector’s Skill – Requires trained and experienced personnel.
❌ Lighting & Accessibility Constraints – Poor lighting and restricted access can affect accuracy.
❌ Subjectivity – Visual interpretations may vary between inspectors, leading to inconsistencies.
❌ Not Suitable for High-Precision Inspections – Advanced NDT methods (UT, RT, ET) may be needed for deeper analysis.
Standards & Certifications for Visual Testing
📜 ASTM E 1444 – Standard for visual examination of materials.
📜 AWS D1.1 – Visual inspection of welds in structural steel.
📜 ISO 17637 – Guidelines for weld visual inspection.
📜 ASME Section V – Visual inspection requirements for pressure vessels.
📜 API 570 – Visual inspection for pipelines.
FAQs About Visual Testing (VT)
1. What is Visual Testing in NDT?
Visual Testing (VT) is a non-destructive testing method that involves the direct or indirect observation of a material or structure to detect surface defects, cracks, corrosion, and misalignments.
2. What types of defects can be detected with Visual Testing?
VT can identify surface cracks, pitting, corrosion, incomplete welds, misalignment, deformation, and material discontinuities.
3. How does direct Visual Inspection differ from indirect Visual Inspection?
Direct Visual Inspection is performed with the naked eye or simple magnification tools.
Indirect Visual Inspection uses borescopes, cameras, and robotic systems to inspect hard-to-reach areas.
4. What are the most common tools used in Visual Testing?
Common tools include flashlights, magnifying glasses, weld gauges, borescopes, endoscopes, and digital cameras.
5. What industries use Visual Testing?
VT is widely used in aerospace, oil & gas, construction, power plants, automotive, and manufacturing industries.
6. Can Visual Testing detect internal defects?
No, VT is limited to surface defects. For internal defects, methods like Ultrasonic Testing (UT) or Radiographic Testing (RT) are required.
7. What are the advantages of using drones for Visual Testing?
Drones allow for remote inspection of hazardous or hard-to-reach areas, reducing risks and inspection time.
8. Is Visual Testing sufficient for weld inspections?
VT is often the first step in weld inspections, but additional NDT methods (MT, UT, RT) may be needed for deeper analysis.
9. What qualifications are required for a Visual Testing inspector?
Inspectors should have NDT certification (ASNT, ISO, PCN) and industry-specific training to interpret results accurately.
10. How can the accuracy of Visual Testing be improved?
Accuracy can be improved using better lighting, magnification tools, digital imaging, and automated inspection systems.
